Complete Architectural Sheet Integration & Presentation Standards for Construction Working Drawings

Architectural drawings are the backbone of any construction project. They communicate design intent, technical details, and construction requirements clearly and accurately. Yet, producing high-quality architectural sheets requires more than just drafting skills. It demands a thorough understanding of sheet integration and presentation standards to ensure drawings are correct, readable, and professional. This post explores practical steps to master these standards and produce architectural outputs that stand out.

---

An engineer carefully drafts a technical drawing, using a ruler and pencil to ensure precise measurements.

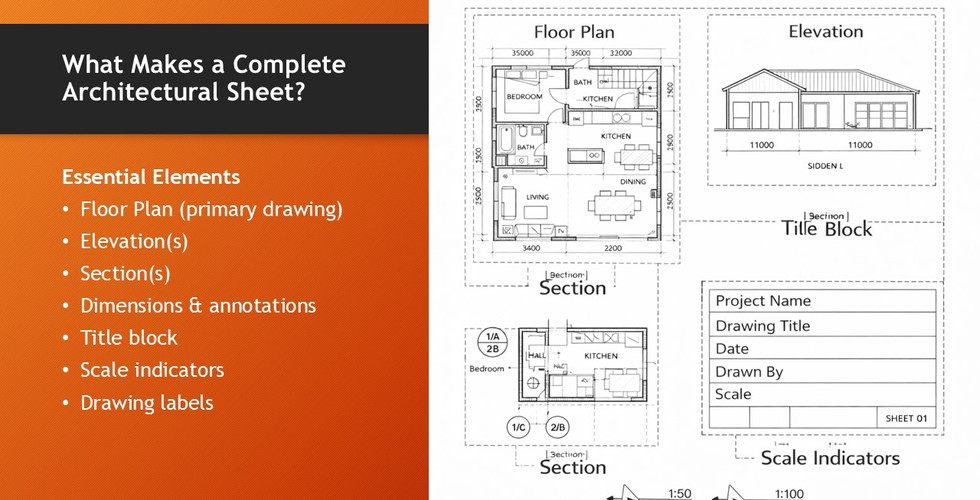

Understanding Architectural Sheet Integration

Architectural sheet integration means organizing multiple drawings and details into a coherent set. This process ensures that all sheets relate logically and visually, making it easier for contractors, engineers, and clients to follow the design.

Key points to focus on include:

• Consistent layout: Use uniform margins, title blocks, and sheet numbering across all drawings.

• Logical sequencing: Arrange sheets in an order that reflects the project flow, such as site plans first, followed by floor plans, elevations, sections, and details.

• Cross-referencing: Include clear references between sheets to guide users from one drawing to related details or sections.




For example, if a floor plan shows a window, the elevation sheet should clearly indicate the same window with matching labels. This integration reduces confusion and errors during construction.

---

An architect carefully reviews detailed blueprints, using a yellow level and pencil to ensure accuracy in the design work.

Assessing Correctness and Scale Construction Working Drawings

Accuracy is critical in architectural drawings. Every line, symbol, and dimension must be precise to avoid costly mistakes.

• Check dimensions: Verify all measurements against the design specifications and ensure they match across related sheets.

• Use appropriate scale: Choose scales that balance detail and readability. For instance, floor plans often use 1:100 or 1:50, while details might require 1:20 or larger.

• Maintain scale consistency: Avoid mixing scales on the same sheet unless clearly indicated.




A practical tip is to print test sheets at actual size to confirm that text and symbols remain legible and that the scale feels right for the intended audience.

---

Architects collaborating over detailed floor plans, discussing design elements and room layouts.

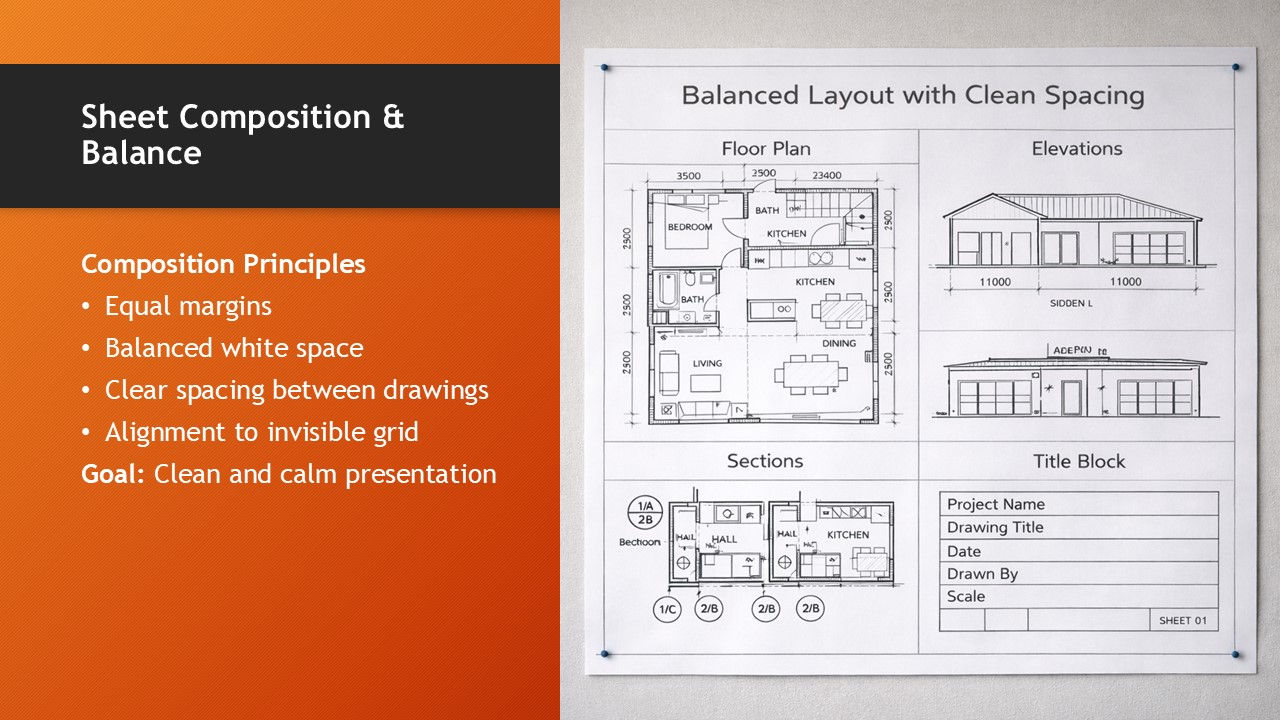

Ensuring Line Quality and Composition

Line quality affects how easily drawings can be read and interpreted. Poor line weight or cluttered composition can obscure important information.

• Use varied line weights: Thicker lines for building outlines, medium for walls, and thinner lines for details and annotations help create visual hierarchy.

• Avoid overcrowding: Space out elements to prevent clutter. Group related information and leave white space for clarity.

• Standardize symbols and hatches: Use industry-standard symbols for doors, windows, and materials to maintain consistency.




For example, a well-composed section drawing uses bold lines to highlight cut elements and lighter lines for background features, guiding the viewer’s eye naturally.

---

Architects review detailed house plans during a collaborative design meeting.

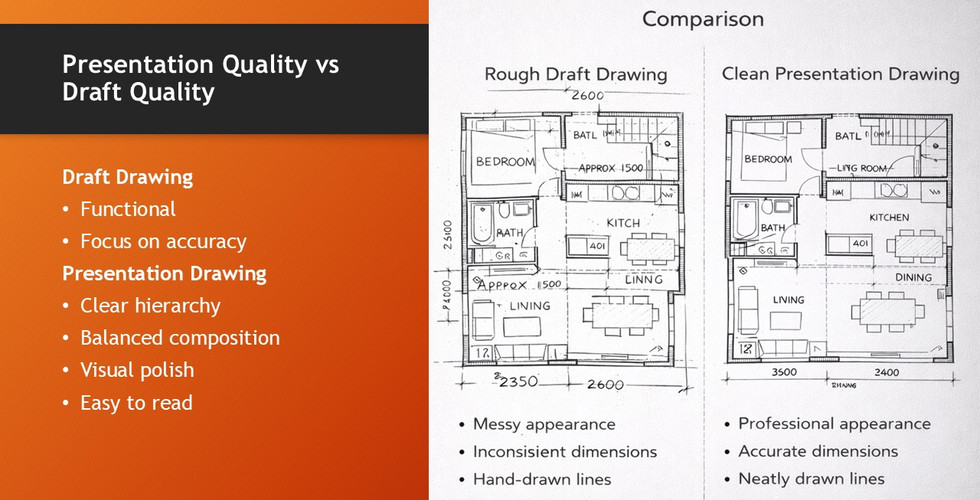

Presentation Tips for Professional Outputs

Presentation standards Construction Working Drawings elevate the professionalism of architectural drawings. Consider these practical tips:

• Title blocks: Include project name, drawing title, scale, date, and author information in a clear, consistent format.

• Annotations: Use legible fonts and sizes, and keep text concise but informative.

• Color use: Apply color sparingly to highlight key elements without overwhelming the drawing.

• File formats: Export drawings in widely accepted formats like PDF for easy sharing and printing.




Using templates can save time and ensure all sheets meet presentation standards without starting from scratch each time.

Head over to our Resource Section for more insights and useful references.
