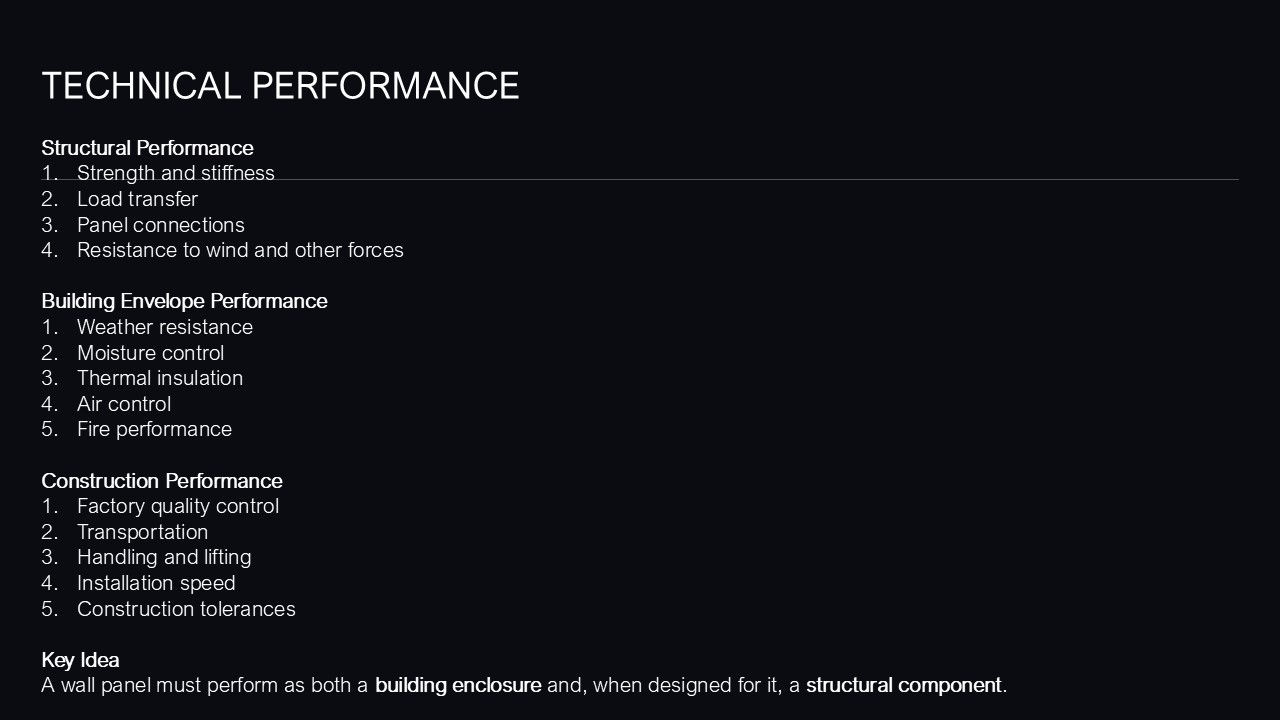

A wall panel looks simple once it is in place, but a lot happens before it reaches the building. The panel has to resist loads, control water, fit with windows and structure, move safely through transport, and still look intentional on the finished facade.
In prefabricated construction, wall panels help shift work from the job site to a controlled production setting. That can improve consistency, reduce site labor, and make enclosure work move faster. The main question is not whether panels are useful. It is which panel system fits the building, the budget, and the construction sequence.
This guide explains the most common wall panel systems: flat, ribbed, window-type, wall-type, and tilt-up panels.
Flat panels work well when the facade needs clean planes. Wall Panel Systems
Flat wall panels are the simplest panel type in appearance. They are usually broad, planar units with little or no surface projection. Their strength comes from panel thickness, reinforcement, backing structure, or a combination of these elements.
Architects often use flat panels when the design calls for a clean, quiet elevation. They can receive finishes such as paint, integral color, stone veneer, brick veneer, textured coatings, or exposed concrete.
Flat panels are common in:
Commercial buildings with simple facade grids
Institutional projects with repetitive wall bays
Industrial buildings where speed matters
Background wall areas between feature elements
Their main advantage is simplicity. They are easier to form, detail, ship, and erect than panels with deep projections. Repetition also helps control cost.
The challenge is visual flatness. A large blank panel can reveal slight waves, patching, staining, or alignment issues. Joint layout matters. Panel size, reveal lines, and finish selection should work together so tolerances feel like part of the design instead of a mistake.
Ribbed panels add strength and shadow
Ribbed panels include raised or recessed vertical, horizontal, or diagonal ribs. The ribs can be shallow surface features or deeper structural shapes. In some systems, the ribs act like stiffeners, helping the panel span farther without adding uniform thickness across the entire face.
The architectural value is just as important. Ribs create shadow, rhythm, and scale. A ribbed wall can look lighter than a flat wall because the surface changes throughout the day as the sun moves.
Ribbed panels are useful when a facade needs:
Strong vertical or horizontal expression
Better stiffness without a fully thick panel
Texture that hides minor surface variation
A durable exterior face with architectural depth
Rib direction should match drainage and maintenance needs. Deep horizontal ribs can collect dust or water if they are not detailed well. Vertical ribs tend to shed water more easily, but they still need careful joints at the top, bottom, and sides.
Ribbed panels also require attention at corners. If the ribs do not return cleanly or align from panel to panel, the facade can look pieced together. Shop drawings and mockups help resolve those conditions before fabrication.
Window-type panels combine wall and openings
Window-type panels are prefabricated wall units that include window openings, frames, or sometimes preinstalled glazing. These panels are often used when the building facade has a regular pattern of windows and solid wall areas.
The benefit is coordination. Instead of installing a wall panel, then framing openings, then setting windows, the panel can arrive with the opening geometry already established. That reduces layout work on site and can improve consistency across floors.
Window-type panels need careful design because openings change how loads move through the panel. Reinforcement often concentrates around corners, heads, sills, and jambs. The panel must resist cracking during lifting, transport, and installation, not just after it is installed.
Key details include:
Flashing at the window head and sill
Air and water seals around the frame
Thermal breaks where needed
Allowance for frame movement
Drainage paths that do not trap water inside the assembly
A common mistake is treating the window as a separate issue. In a window-type panel, the wall and window opening act as one coordinated component. The panel joint, weather barrier, and glazing system should be drawn together.
Wall-type panels form larger enclosure modules
Wall-type panels are broader assemblies that may include structure, insulation, air and vapor control layers, interior backing, exterior cladding, and sometimes service zones. They are closer to a complete wall system than a single facing panel.
These panels can be made from precast concrete, sandwich panel construction, light-gauge steel framing, wood framing, metal-faced insulated panels, or other systems. The exact assembly depends on the building type and performance requirements.
Wall-type panels are often selected when the project needs faster enclosure. Once the structure is ready, large portions of the exterior wall can be set quickly. This helps protect interior work from weather sooner.
Design teams should confirm these items early:
Design issue | Why it matters |
Panel size | Affects shipping, crane capacity, and erection sequence |
Joint spacing | Controls appearance, movement, and water management |
Connection design | Transfers loads safely into the main structure |
Thermal performance | Reduces heat loss and condensation risk |
Fire and code requirements | Vary by occupancy, height, and material |
The best wall-type panel systems are designed from both sides. Outside, they must resist weather and look finished. Inside, they must connect cleanly to floors, partitions, ceilings, and services.
Tilt-up panels are cast on site and lifted into position
Tilt-up construction is different from factory prefabrication, but it shares the same logic: build large wall elements horizontally, then move them into final position.
In tilt-up work, crews cast concrete panels on a slab or casting bed at the project site. After curing, a crane lifts each panel into place. The panels are braced until the roof, floors, or structural frame provide permanent support.
Tilt-up is widely used for warehouses, distribution centers, schools, retail buildings, and low- to mid-rise commercial projects. It works best when the site has enough open area for casting and crane movement.
Its strengths include:
Large wall sections built quickly
Durable concrete exterior walls
Fewer shipped panel units compared with factory precast
Good value on simple, repetitive buildings
Tilt-up has limits. It needs site space, careful lifting engineering, and a well-planned brace layout. Openings, embeds, reveals, insulation, and finishes must be set before or during casting. Once the concrete cures, changes become difficult.
How to choose the right panel system?
The right system comes from the building’s priorities. A small public building with a refined facade may favor flat or ribbed architectural panels. A repetitive housing or hotel facade may benefit from window-type panels. A warehouse may make the most sense with tilt-up construction. A project with a tight schedule may call for larger wall-type assemblies.
Use these questions early in design:
What loads must the panel carry or transfer?
How large can panels be shipped and lifted?
Where should joints appear on the facade?
How will the system manage water, air, heat, and movement?
Can the construction site support the erection sequence?
Which trades need to coordinate before fabrication?
References such as Architectural Graphic Standards are useful because they show typical relationships between panels, joints, openings, anchors, and building structure. Treat those details as starting points, then adapt them to the actual project, code requirements, manufacturer guidance, and engineer’s design.
Panel systems reward early decisions. When panel size, joint layout, openings, finishes, and connections are coordinated from the start, prefabricated walls can look clean and perform well. When those decisions happen late, panels become expensive puzzles. Choose the system that matches the building, then design every joint as carefully as the panel itself.
