Essential Wiring Methods and Electrical Protection Strategies for Modern Architecture
- Dennis Asis
- 9 hours ago
- 3 min read
Electrical wiring and protection play a crucial role in the safety, functionality, and efficiency of modern buildings. As architectural designs become more complex and technology-driven, choosing the right wiring methods and protection systems ensures reliable power distribution and reduces risks such as electrical fires or equipment damage. This post explores key wiring techniques and protection strategies that architects, engineers, and builders should consider when planning electrical installations.
Common Wiring Methods in Modern Architecture
Selecting the appropriate wiring method depends on the building type, usage, and safety requirements. Here are some widely used wiring methods:
Conduit Wiring
This method involves running insulated wires through metal or PVC conduits. It offers excellent protection against physical damage and moisture. Conduit wiring is common in commercial buildings and areas exposed to harsh conditions.
Surface Wiring
Wires are fixed on the surface of walls or ceilings using clips or conduits. This method is easy to install and maintain but less protected from damage. It suits temporary setups or buildings where walls cannot be opened.
Concealed Wiring
Wires are embedded inside walls, floors, or ceilings, hidden from view. This method provides a clean look and protects wires from external damage. It requires careful planning during construction to avoid future access issues.
Busbar Trunking Systems
Used in large commercial or industrial buildings, busbars distribute power efficiently through metal bars enclosed in protective casing. This system supports high current loads and simplifies maintenance.
Each method has its advantages and limitations. For example, concealed wiring enhances aesthetics but complicates repairs, while conduit wiring offers durability but may increase installation costs.
Electrical Protection Strategies to Ensure Safety
Electrical protection systems prevent hazards such as electric shocks, short circuits, and fires. Implementing these strategies is essential in modern architecture:

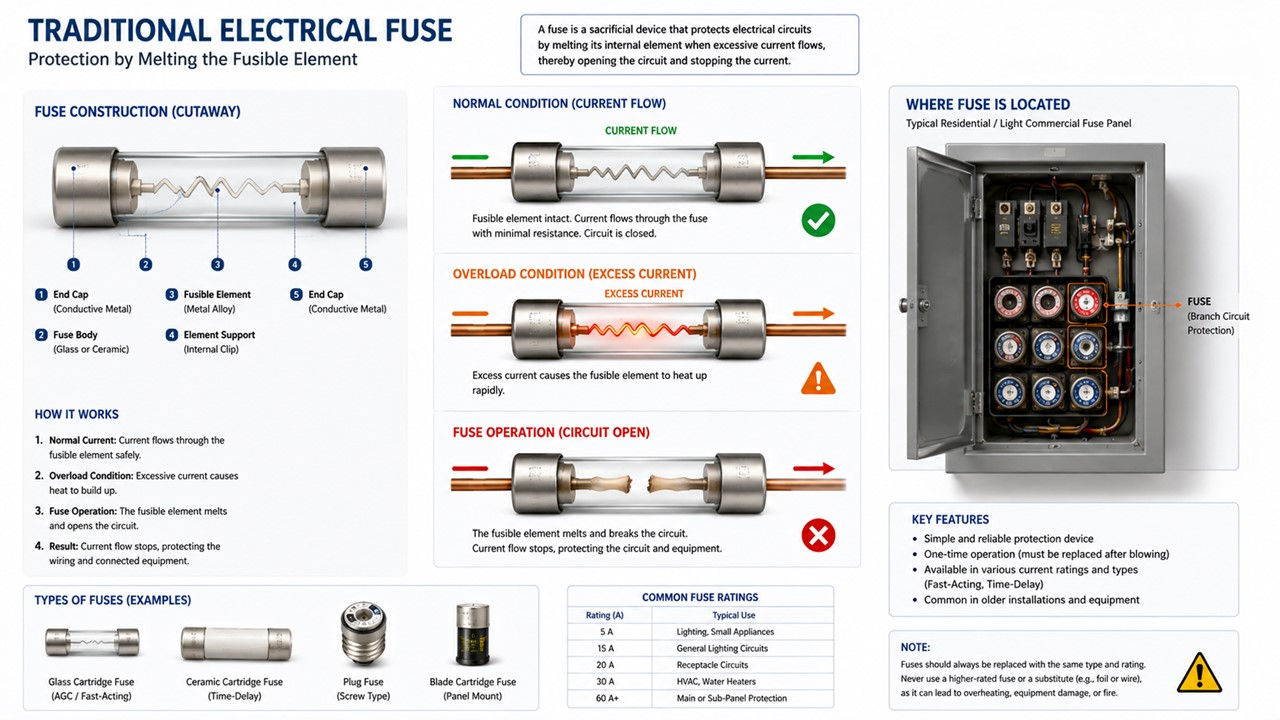

Circuit Breakers and Fuses
These devices interrupt power flow when current exceeds safe levels. Circuit breakers can be reset, while fuses need replacement after blowing. They protect wiring and appliances from overloads.

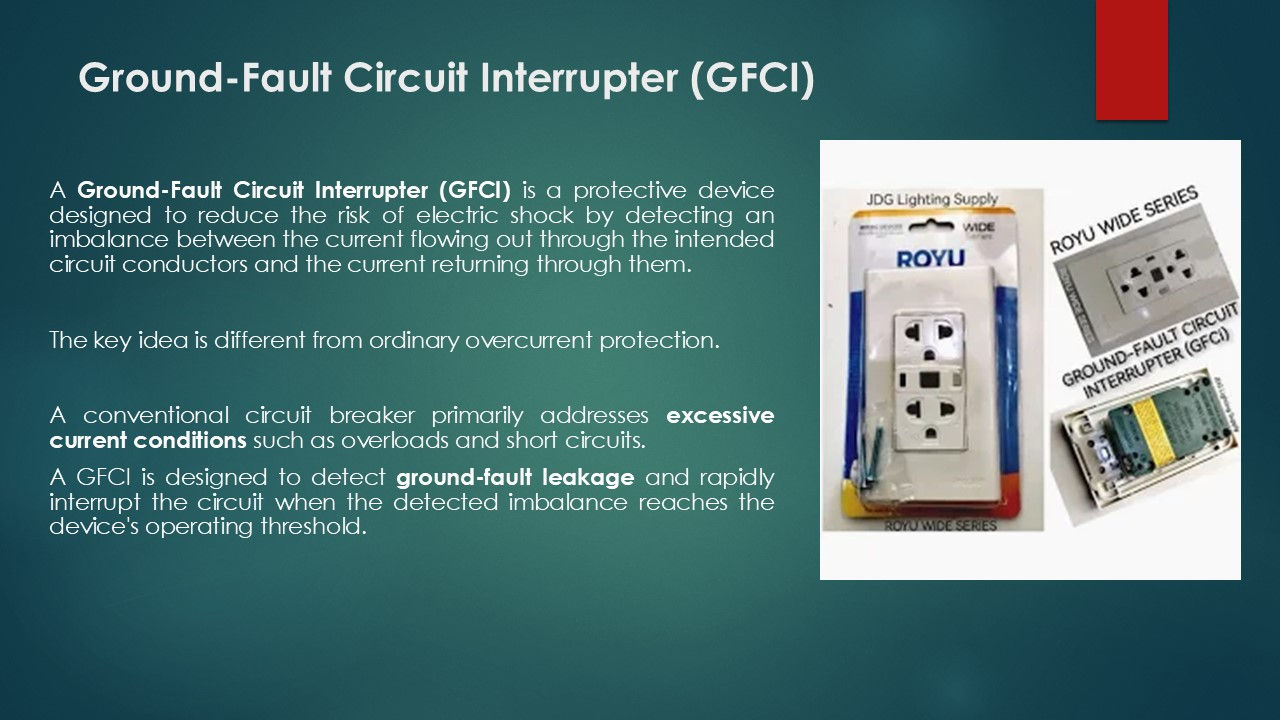

Residual Current Devices (RCDs)
RCDs detect leakage currents and disconnect power quickly to prevent electric shocks. They are especially important in wet areas like bathrooms and kitchens.
Surge Protectors
These devices safeguard electrical equipment from voltage spikes caused by lightning or switching operations. Surge protection extends the lifespan of sensitive electronics.
Grounding Systems
Proper grounding directs fault currents safely into the earth, reducing shock risks. Grounding also stabilizes voltage levels and protects equipment.
Fire-Resistant Wiring and Insulation
Using cables with fire-retardant insulation slows fire spread and provides extra time for evacuation. This is critical in high-occupancy buildings.
Practical Examples in Architectural Projects
In a recent office building project, engineers combined conduit wiring with RCDs and surge protectors to handle high-tech equipment safely. The concealed wiring method was chosen for clean aesthetics, while accessible junction boxes allowed easier maintenance.
In residential buildings, concealed wiring with circuit breakers and grounding systems is standard. Bathrooms and kitchens include RCDs to enhance user safety. Fire-resistant cables are used in multi-story apartments to meet strict safety codes.
Final Thoughts on Wiring and Protection
Choosing the right wiring methods and electrical protection strategies is vital for modern architecture. These choices affect building safety, maintenance, and energy efficiency. Architects and engineers should collaborate early in the design process to select solutions that meet both functional and safety requirements.
Understanding the strengths and limitations of each wiring method and protection device helps create buildings that are safe, reliable, and ready for future technology needs. Prioritizing electrical safety protects occupants and assets, making it a fundamental part of responsible architectural design.
