Introduction to Communication, Electronics, and Intelligent building utilities Systems
- Dennis Asis
- 1 day ago
- 9 min read
A building can meet code, look complete, and still fail its occupants if its communication and electronic systems are poorly planned. A fire alarm speaker that cannot be heard clearly, a wireless access point hidden behind metal ductwork, or a card reader placed where doors cannot swing safely can turn small coordination errors into daily problems.
Architecture is often taught through space, structure, enclosure, and material. Yet modern buildings also depend on signals, sensors, controllers, and low-voltage pathways. These systems help people communicate, move safely, control comfort, conserve energy, and respond to emergencies.
This introduction explains the main communication, electronics, and intelligent systems used in buildings, with a focus on how they affect architectural planning.

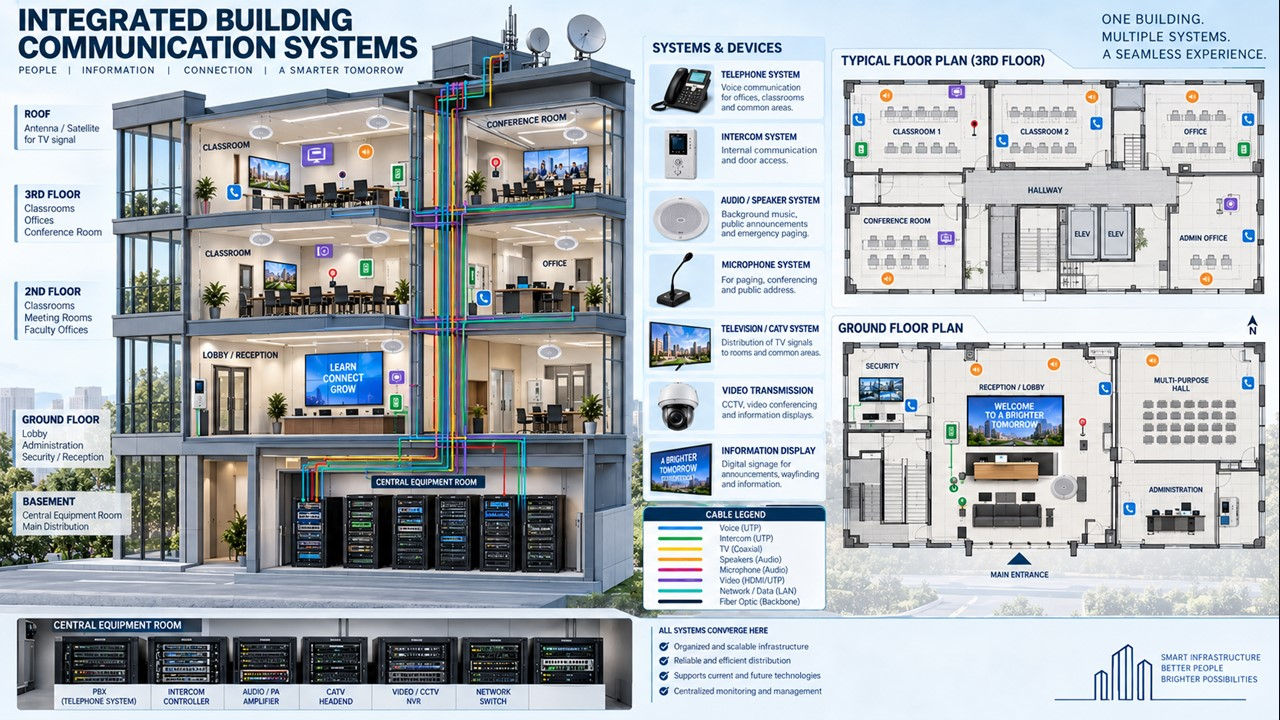

Communication systems make building utilities usable and safe
Communication systems carry information. Some serve everyday activities, while others support life safety. In architectural drawings, they often appear as symbols, outlet locations, device heights, riser diagrams, and equipment room layouts.
The most common systems include:
Data networks
Telephone or voice systems
Intercom and entry communication
Public address and paging
Emergency voice communication
Distributed antenna systems for radio or cellular signal support
Audiovisual systems in teaching, assembly, or worship spaces
Security communication between devices and monitoring points
These are usually low-voltage systems, which means they operate at lower electrical levels than power circuits. The National Electrical Code, published by the National Fire Protection Association, separates many low-voltage circuits from power wiring because they have different safety, insulation, and installation requirements.
For design purposes, low voltage does not mean low importance. A data outlet in the wrong place can make a study room difficult to furnish. A poorly located ceiling speaker can create uneven sound coverage. A missing conduit between an entry vestibule and a reception point can force expensive changes after walls are closed.
Data networks shape space planning
Network systems connect computers, access points, cameras, sensors, controllers, and many other devices. Even when wireless service is expected, buildings still need wired infrastructure. Wireless access points usually connect back to network switches through cables, often located above ceilings or in dedicated rooms.
A typical building network includes:
A main telecommunications room
Smaller telecommunications rooms on other floors
Horizontal cabling from rooms to outlets or devices
Cable trays, conduits, sleeves, and risers
Power and cooling for network equipment
Structured cabling standards, such as those developed by telecommunications industry groups, define common practices for cable distances, pathways, and room layouts. One widely used planning rule is that horizontal copper cabling has distance limits between the telecommunications room and the outlet. That affects floor plate planning. In a large building, one small closet near the core may not serve every area well.
For architecture, the takeaway is simple: communication rooms are not leftover storage rooms. They need proper dimensions, clearances, ventilation, protected pathways, and access for maintenance.
Life safety communication has stricter rules
Fire alarm and emergency communication systems follow strict code requirements. NFPA 72, the National Fire Alarm and Signaling Code, gives requirements for fire alarm devices, notification appliances, emergency voice systems, and monitoring.
These systems may include:
Horns and strobes
Speakers for voice evacuation
Manual pull stations
Smoke and heat detectors
Fire alarm control equipment
Firefighter communication systems in larger or complex buildings
Architecture affects performance. A high ceiling may require different detector spacing than a flat, low ceiling. A noisy mechanical room needs notification devices that people can perceive over background sound. A corridor with many doors still needs visible notification where required.
Emergency systems also require survivability in certain cases. That can mean protected wiring routes, fire-rated enclosures, or separation from other systems. Early coordination with fire protection and electrical designers helps avoid conflicts with ceilings, rated walls, shafts, and public circulation.
Electronic systems control access, comfort, and information
Electronic building systems use devices, circuits, and controllers to perform specific tasks. Some are visible to occupants. Others sit behind walls, above ceilings, or inside equipment rooms.
Common electronic systems include:
Access control
CCTV-style video surveillance
Intrusion detection
Lighting controls
Motorized shades
Audio systems
Digital signage
Parking control equipment
Elevators and destination communication interfaces
Metering and monitoring devices
These systems are part of building utilities electrical planning, even when they are drawn separately from power distribution. They need power, pathways, mounting surfaces, environmental protection, and coordination with doors, glazing, ceilings, millwork, and structure.
Access control begins with the door
Access control is one of the clearest examples of architecture and electronics meeting at a small detail. A secure door may include:
Card reader or keypad
Electric lock or strike
Door position switch
Request-to-exit device
Power transfer hardware
Local controller connection
Emergency release interface
Each piece affects the door schedule, frame preparation, hardware set, wall elevation, and life safety strategy. A locked egress door must still comply with building and fire codes. In many occupancies, people must be able to exit without special knowledge or effort. That principle comes from life safety codes and is central to safe access control design.
A common coordination issue occurs when the architect, hardware consultant, and electrical designer work from separate assumptions. The door may be specified with one type of lock while the electrical drawings show wiring for another. The result can be field changes, patched frames, or delayed inspections. Clear door hardware groups and low-voltage rough-in plans reduce that risk.
Lighting controls are now electronic systems
Basic light switches still exist, but many buildings use occupancy sensors, daylight sensors, time schedules, dimming modules, and networked control panels. Energy codes in the United States commonly require automatic shutoff, daylight-responsive control, or separate control zones in many building types.
These requirements influence design. A classroom with large windows may need daylight zones near the glazing and separate controls for presentation areas. An open studio may need sensors located where partitions, pendant fixtures, or ceiling forms do not block detection. A restroom may use vacancy or occupancy sensing, but the sensor location must detect users reliably.
Lighting controls also affect the visual character of architecture. Dimming, scene control, and daylight response can support comfort when planned well. When planned late, sensors and wall stations can end up scattered across carefully composed surfaces.
Intelligent building systems connect devices and decisions
An intelligent building system links equipment, sensors, and software so the building can monitor conditions and respond. The term can sound vague, but the basic idea is practical: measure what is happening, compare it to a desired condition, and send commands to equipment.
A building automation system often connects:
Heating, ventilation, and air-conditioning equipment
Temperature and humidity sensors
Air quality sensors
Lighting controls
Energy meters
Pumps and fans
Dampers and valves
Alarms and trend logs
Open communication protocols, including those standardized through professional engineering organizations, allow equipment from different sources to exchange data. The goal is not to make the building feel complicated. The goal is to make operation visible and manageable.
For example, a lecture hall may use carbon dioxide sensors to estimate occupancy and adjust ventilation. The American Society of Heating, Refrigerating and Air-Conditioning Engineers publishes ventilation standards that guide outdoor air requirements for different occupancies. If the room is full, the system can increase ventilation within its design capacity. If the room is empty, it can reduce unnecessary airflow and energy use.
Sensors need architectural thinking
Sensors are small, but placement determines whether their data represents real conditions.
A thermostat beside a sunny window may read warmer than the room feels. A motion sensor blocked by a pendant fixture may miss part of a room. An air quality sensor near a supply diffuser may measure fresh supply air instead of occupied-zone conditions.
Good sensor placement considers:
Height above finished floor
Distance from windows, doors, and supply air
Furniture layout
Ceiling type and obstructions
Occupant behavior
Maintenance access
This is where electrical architectural coordination matters. A reflected ceiling plan cannot focus only on visual order. It also has to support detection, coverage, and service access.
Intelligent does not mean automatic perfection
A smart control sequence can still perform poorly if the building is not commissioned. Commissioning is the process of checking whether systems are installed, tested, and operating according to the design intent. Many building rating systems and energy codes reference commissioning because complex systems often need functional testing after installation.
Examples of commissioning checks include:
Confirming that occupancy sensors turn lights off after the correct delay
Testing whether emergency alarms report to the correct panel
Verifying that dampers open and close as commanded
Checking that access control releases during a fire alarm where required
Reviewing trend data for temperature and equipment operation
This matters because intelligent systems combine architecture, engineering, software, installation, and operations. A drawing can show a sensor in the right place, but testing proves whether it works as intended.
Pathways and spaces are architectural decisions
Communication and electronic systems need physical routes. Cables do not float through a building. They need conduits, trays, sleeves, boxes, pull spaces, and rooms. These elements compete with structure, ducts, pipes, lights, ceilings, and fireproofing.
The earlier these routes appear in design, the cleaner the building usually becomes.
Horizontal and vertical pathways
Horizontal pathways run across a floor. They may use cable tray above corridors, conduit in walls, floor boxes in slabs, or surface raceways in renovation projects.
Vertical pathways connect floors. They may use stacked telecommunications rooms, riser shafts, sleeves, or dedicated conduit banks. Stacking rooms is often more efficient because cables can rise in a clear, protected path. Scattered rooms may require longer runs, more penetrations, and more coordination.
Rated assemblies add another layer. When conduits or cables pass through fire-rated walls or floors, penetrations need approved firestopping systems. Firestopping is not only a construction detail. It depends on opening size, cable type, wall rating, and installation method.
Equipment rooms need more than square footage
Telecommunications rooms, security rooms, and control rooms need working clearances and environmental support. Network and control equipment can generate heat. Batteries for emergency or security systems may require special ventilation or clearances, depending on type and code requirements.
Useful rooms usually include:
Clear wall space for mounted panels
Backboards where needed
Dedicated electrical receptacles
Grounding and bonding
Lighting levels suitable for service work
Door sizes that allow equipment replacement
Space for future cables
A common mistake is placing these rooms where they are hard to access, too hot, too small, or filled with unrelated storage. That makes maintenance harder and increases the chance of accidental damage.
Ceilings are crowded coordination zones
Reflected ceiling plans show lights, diffusers, sprinklers, speakers, access panels, cameras, sensors, smoke detectors, and sometimes wireless devices. Each device has a reason to be there. Some need coverage. Some need spacing from obstructions. Some need access. Some must stay clear of sprinkler spray patterns or fire alarm visibility requirements.
A clean ceiling plan balances visual order with technical needs. Aligning devices can improve appearance, but forced alignment can reduce performance. For example, moving a smoke detector only to center it between lights may conflict with code spacing or airflow limitations.
Resilience and maintainability keep systems useful
Communication and intelligent systems are not finished on opening day. They must be maintained, updated, tested, and sometimes expanded.
Resilience means a building can keep critical functions operating during stress. Maintainability means people can inspect, repair, and replace components without damaging the building or interrupting occupants more than necessary.
Backup power supports critical communication
Some systems need power during outages. Fire alarm systems often use batteries. Emergency communication equipment, access control components, network equipment, and security systems may also need backup power depending on the project requirements.
Backup power planning asks practical questions:
Which systems must remain active?
How long must they operate?
Where are batteries or backup equipment located?
How will heat and ventilation be handled?
What happens when normal power returns?
A secure entry system, for example, must balance security with safe egress. During an emergency, life safety takes priority. That is why access control must coordinate with fire alarm, door hardware, and code requirements from the start.
Maintenance access affects design quality
Access panels, removable ceiling tiles, service clearances, and labeled pathways may not attract attention in renderings, but they shape the life of the building. A valve, controller, or junction box hidden behind permanent millwork can turn routine service into demolition.
Architecture can make service access feel intentional. Align access panels with ceiling grids. Place control panels in secondary spaces that are still reachable. Group devices logically. Avoid placing key equipment above fragile finishes or hard-to-reach areas.
Good documentation also helps. Clear as-built drawings, panel labels, cable identifiers, and control sequences allow facility teams to understand the building after the design team leaves.
A practical way to read these systems in a building
When studying a plan or visiting a building, look for three layers.
The visible layer includes outlets, speakers, card readers, cameras, strobes, thermostats, displays, and wall stations. These devices affect daily experience.
The pathway layer includes conduits, trays, sleeves, shafts, backboxes, equipment racks, and cable routes. This layer explains how signals move.
The control layer includes panels, controllers, sensors, software logic, and monitoring points. This layer explains how the building reacts.
Reading all three layers together turns electronic systems from a set of symbols into part of architectural thinking. A good building does not hide these systems by ignoring them. It integrates them through clear space planning, careful detailing, and respect for code.
The main lesson is that communication, electronics, and intelligent systems are not accessories added after architecture. They are part of how buildings function. Plan rooms for them. Reserve pathways for them. Coordinate visible devices with space, code, and use. When these systems are understood early, architecture becomes safer, clearer, and easier to operate over time.
